Produktdatenblatt

PULSE

PULSE-SYM02-16LED-4000K-1050 mA

Ragni

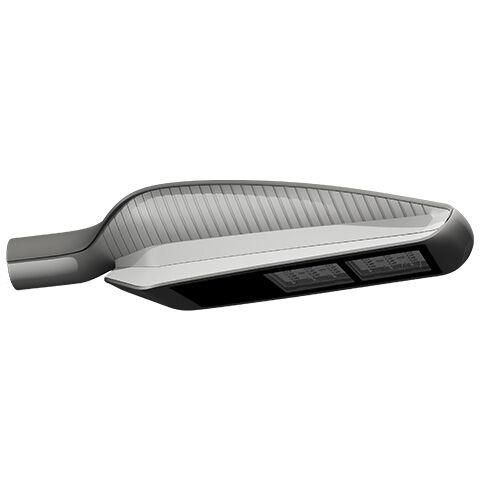

Pulse is an injected cast aluminium functional luminaire designed for road lighting. It comes in a flat rectangular shape with an aerodynamic profile, with a rounded back and slightly thinner on the front. The two long sides of the luminaire have decorative vertical streaks. Class II electric, it receives 1 or 2 dedicated LED modules. The luminaire is protected from moisture by an extruded silicone seal. A vent prevents pressure changes inside the luminaire and improves the life of the components.

Verfügbare Bestückungen Lampen-Nennleistung Lampen-Lichtstrom Leuchten-Lichtausbeute CCT CRI
1 x LED 53 W 6436 lm 121 lm/W 4000 K 70
PULSE

PULSE

Lichtaustritt 1

1 x LED

Montageart

Mastaufsatzmontage

Bauform und Abmessungen

Länge: 700 mm

Breite: 300 mm

Höhe: 100 mm

Ausrichtbarkeit

Starr

Elektrik

Systemleistung: 53 W

Schutzklasse: II

Schutzeigenschaften

IP: 66

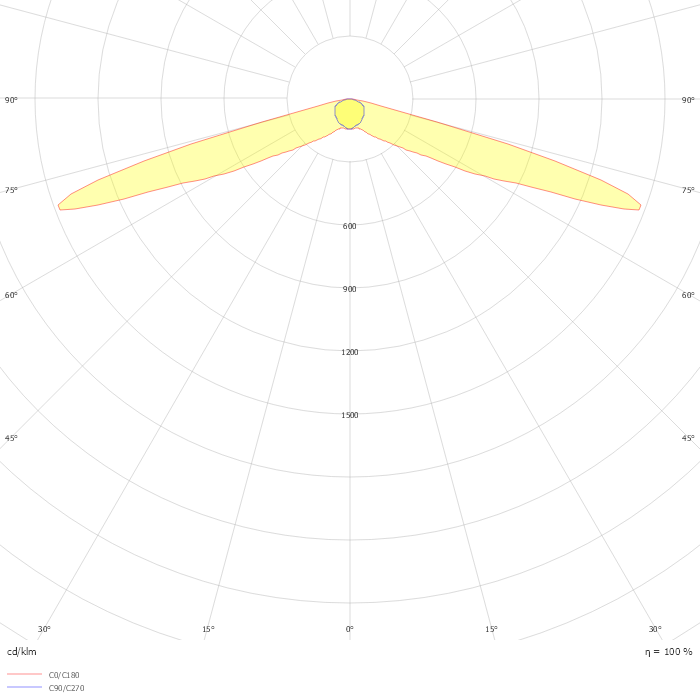

Photometrie-Dateien

ZIP file
