Produktdatenblatt

84022.1 LED CG-S

40071355751

Eaton Emergency Lighting

• Round safety luminaire with LED technology with high protection class (IP65) for indoor and outdoor use • Robust construction from aluminium diecast with powder coating (UV stabilised) • High impact resistant diffuser made of UV stabilised polycarbonate • Two waterproof cable infeeds and double terminal for through-wiring • An integrated pressure equalization membrane reduces the effects of condensation in changing weather conditions • Spacing up to 20 m from luminaire to luminaire for escape route and wide area illumination • Minimum service requirement due to high service life of the LEDs (50,000 hours) • Shortened inspection effort due to CEWA GUARD technology • Automatic function monitoring of up to 20 luminaires per circuit • Reduced installation expenditure with STAR technology • Freely programmable mixed operation of the switching modes per luminaire in one circuit

Verfügbare Bestückungen Lampen-Nennleistung Lampen-Lichtstrom Leuchten-Lichtausbeute CCT CRI
1 x LED 9,3 W 850 lm 62 lm/W 4000 K 80
1 x LED 2,5 W 225 lm 90 lm/W 6500 K 70
84022.1 LED CG-S

84022.1 LED CG-S

Lichtaustritt 1 (Notbeleuchtung)

1 x LED

84022.1 LED CG-S

84022.1 LED CG-S

Lichtaustritt 1 (Notbeleuchtung)

1 x LED

Montageart

Deckenanbau, Wandanbau

Bauform und Abmessungen

Höhe: 98 mm

Durchmesser: 266 mm

Ausrichtbarkeit

Starr

Elektrik

Systemleistung: 9,3 W

Schutzklasse: I

Informationen zu Notlichtfunktionen

Reine Notbeleuchtung

Rettungszeichenleuchte: N/A

Schutzeigenschaften

IP: 65

IK: 10

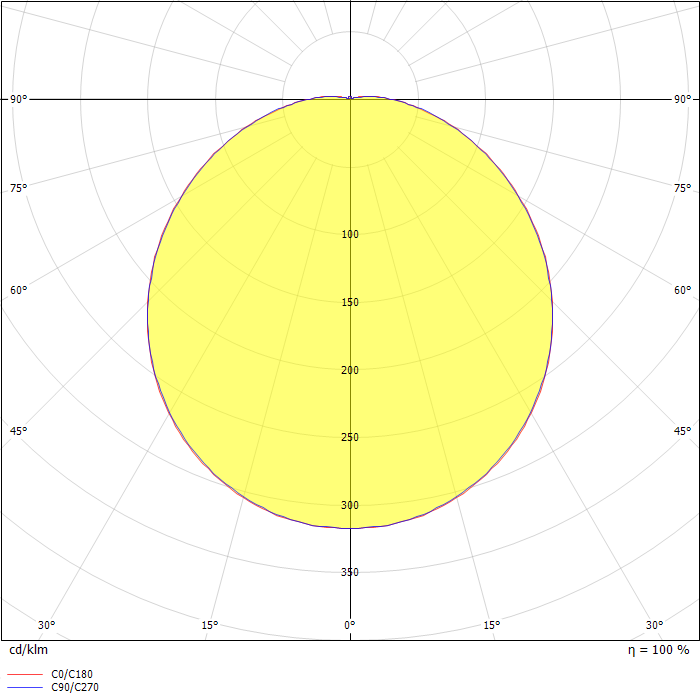

Photometrie-Dateien

ZIP file
