Produktdatenblatt

3380 Susa ME - street 3000K CRI 70 54W CLD Grey

340502-39

Disano

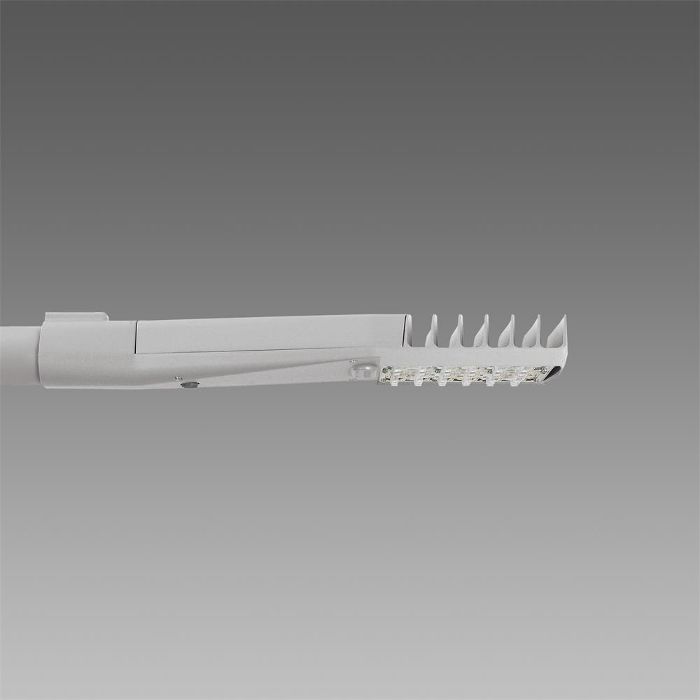

Housing: in die-cast aluminium and designed with a very small surface exposed to wind. Cooling fins integrated in the cover. Attachment: die-cast aluminium with screws for locking the fixture. Suitable for poles with a diameter of 45-60 mm. Optics: in high-performance PMMA resistent to high temperatures and UV rays. Coating: pre-treatment of metal surface, polyester powder coating to ensure resistance to corrosion and salt spray fogs, UV stabilised. Special coating: upon request: available with coating tested to withstand corrosion tests in agressive artificial atmospheres (UNI EN ISO 9227) or marine environments (sea front). Heat Sink: the heat sink is designed and made to allow the LEDs to operate at temperatures capable of ensuring excellent performance/output and long service life. Low flicker: luminaire with very low flicker: evenly distributed light for greater visual safety. Photobiological risk: exempt risk group according to EN62471. : EN60598-1. With degree of protection according to EN60529. Equipment: - IP67 quick connector. - anti-condensation valve. - temperature controller with auto-reset. - EN 61547 compliant surge protection. - BASIC PROG built-in functions. On request: - 1-10V dimmable power supply, subcode 12 - virtual midnight device, subcode 30 - power line carrier, subcode 0078 - Nema Socket, subcode 40 - Zhaga Socket, subcode 0054

Verfügbare Bestückungen Lampen-Nennleistung Lampen-Lichtstrom Leuchten-Lichtausbeute CCT CRI
1 x LED 54 W 7421 lm 137 lm/W 3000 K 70
3380 Susa ME - street 3000K CRI 70 54W CLD Grey

3380 Susa ME - street 3000K CRI 70 54W CLD Grey

Lichtaustritt 1

1 x LED

Montageart

Mastaufsatzmontage

Bauform und Abmessungen

Länge: 549 mm

Breite: 160 mm

Höhe: 81 mm

Ausrichtbarkeit

Starr

Design

Oberflächenanmutung: Aluminum

Elektrik

Systemleistung: 54 W

Schutzklasse: II

Schutzeigenschaften

IP: 66

IK: 07

Kennzeichnungen: CE, ENEC

Weitere Informationen

Temperaturbereich: -30...40 °C

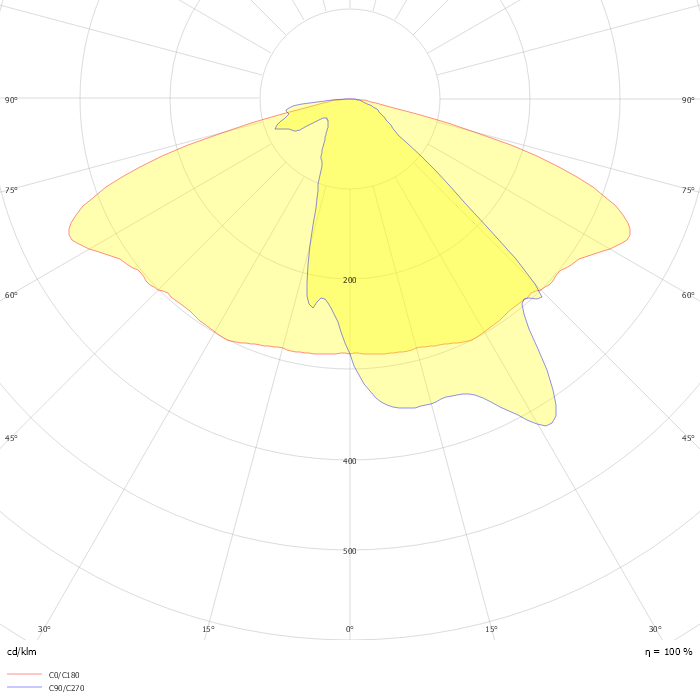

Photometrie-Dateien

ZIP file
