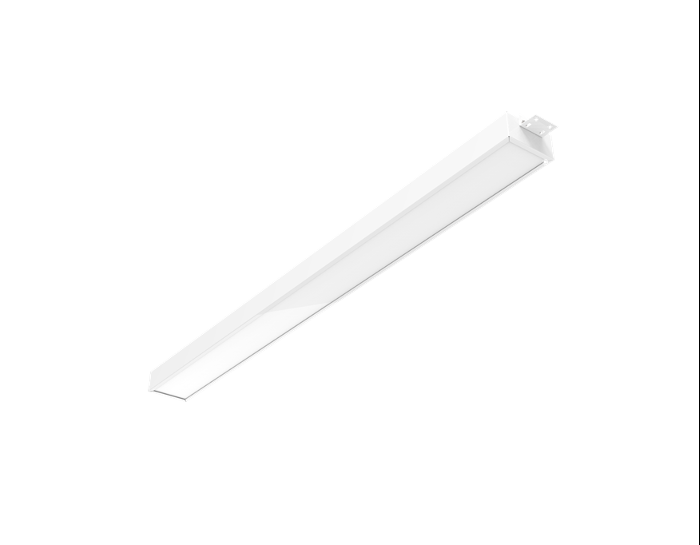

Luminaire for rack ceiling system. Stainless steel housing with white powder coating. Application: administrative facilities, lobbies. Recessed mounted compatible with rack ceiling with rails of Italian and German design. Length, mm: 1 170 Width, mm: 100 Height/depth, mm: 50 Power factor: 0,95 Input voltage (AC, 50Hz), V: 176...264 Ingress protection (IP): IP20 Impact resistance: IK02 Protection class: I AC frequency, Hz: 50 Flicker, %: 1 Climatic modification and category of placement: УХЛ4 https://www.varton.ru/products/ofisnye-svetilniki-dlya-nestandartnykh-potolkov/al-svetilniki-dlya-reechnykh-potolkov/al220-ip20-reechnyy-p-k-1170-100mm-analog-1-36/svetodiodnyy-svetilnik-varton-dlya-reechnogo-potolka-1170kh100-35-vt-4000-k-ip20/
Verfügbare Bestückungen | Lampen-Nennleistung | Lampen-Lichtstrom | Leuchten-Lichtausbeute | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 35 W | 2793 lm | 80 lm/W | 4000 K | 80 |
Montageart
Deckeneinbau
Bauform und Abmessungen
Länge: 1170 mm
Breite: 100 mm
Höhe: 50 mm
Ausrichtbarkeit
Starr
Elektrik
Systemleistung: 35 W
Schutzeigenschaften
IP: 20
IK: 02

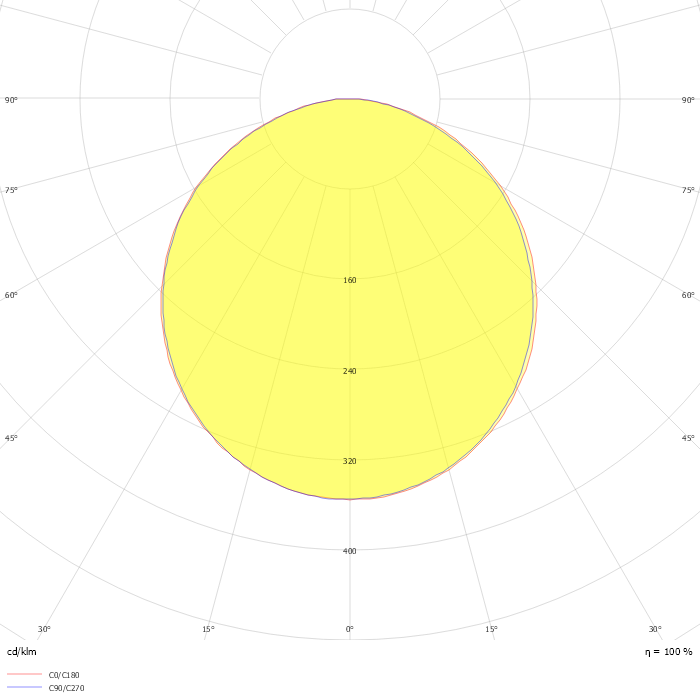

Photometrie-Dateien
ZIP file
