• Safety luminaire with LED technology for recessed mounting with square bezel • Typical ceiling cut-out diameter of 68 mm and low profile of only 30 mm • Compact housing for LED supply (required height for entering the ceiling only 100 mm) including through-wiring clamp and strain relief • Wide light point spacing due to wide light distribution optics and high power LEDs •Up to 18 m from luminaire to luminaire for escape route illumination and wide area illumination (3x03.1) •Up to 20 m from luminaire to luminaire for escape route illumination and wide area illumination (3x04.1)
Lampentyp | Lampen-Nennleistung | Gesamtlichtstrom | Leuchten-Lichtausbeute | CCT | CRI |
---|---|---|---|---|---|
LED | 4,4 W | 620 lm | 141 lm/W | 4000 K | 80 |
Lampentyp | Lampen-Nennleistung | Gesamtlichtstrom | Leuchten-Lichtausbeute | CCT | CRI |
---|---|---|---|---|---|
LED | 4,4 W | 620 lm | 141 lm/W | 4000 K | 80 |
Montageart
Deckeneinbau
Bauform und Abmessungen
Länge: 80 mm
Breite: 80 mm
Höhe: 2 mm
Ausrichtbarkeit
Starr
Elektrik
Systemleistung: 8,8 W
Schutzklasse: II
Informationen zu Notlichtfunktionen
Zusätzliche Notbeleuchtungseigenschaft
Notfall Batterieversorgung: Zentralbatterie
Rettungszeichenleuchte: N/A
Schutzeigenschaften
IP: 20
IK: 03

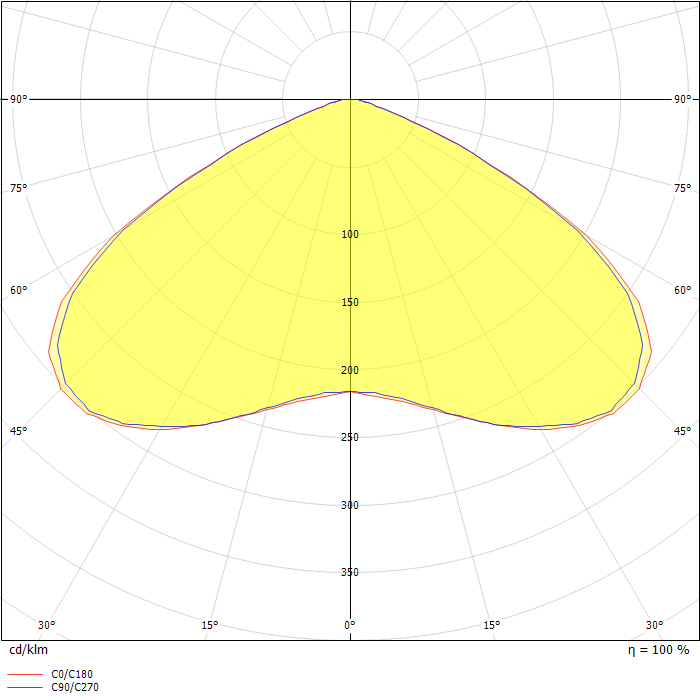

Photometrie-Dateien
ZIP file
