Produktdatenblatt

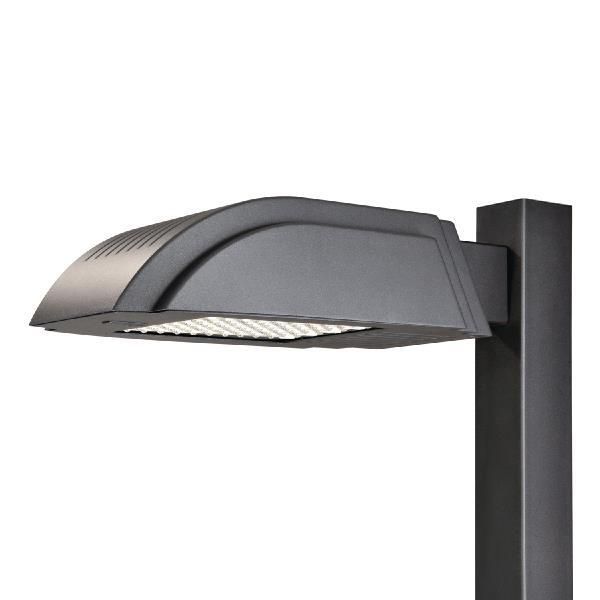

VXS/VXM Vision Site LED

VXM-E06-LED-E1-RW-7060

Cooper Lighting

One-piece heavy-wall, die-cast aluminum housing and door, One flush-mounted quick release latch for tool-less access, Offered standard in 4000K (+/- 275K) CCT and nominal 70 CRI, 120-277V 50/60Hz, 347V 60Hz or 480V 60Hz operation, Choice of 12 high efficiency, patent pending AccuLED Optics™, Suitable for operation in -40°C to 40°C ambient environments, Proprietary circuit module withstands 10kV of transient line surge, Available in arm- and wall-mount configurations and optional strut rod, Features a five-year limited warranty

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 150,5 W 19233 lm 128 lm/W 3000 K 75
VXS/VXM Vision Site LED

VXS/VXM Vision Site LED

Lichtaustritt 1 (integriert)

LED

Montageart

Mastaufsatzmontage

Bauform und Abmessungen

Länge: 52 mm

Breite: 305 mm

Höhe: 10 mm

Ausrichtbarkeit

Starr

Elektrik

Systemleistung: 150,5 W

Schutzeigenschaften

IP: 47

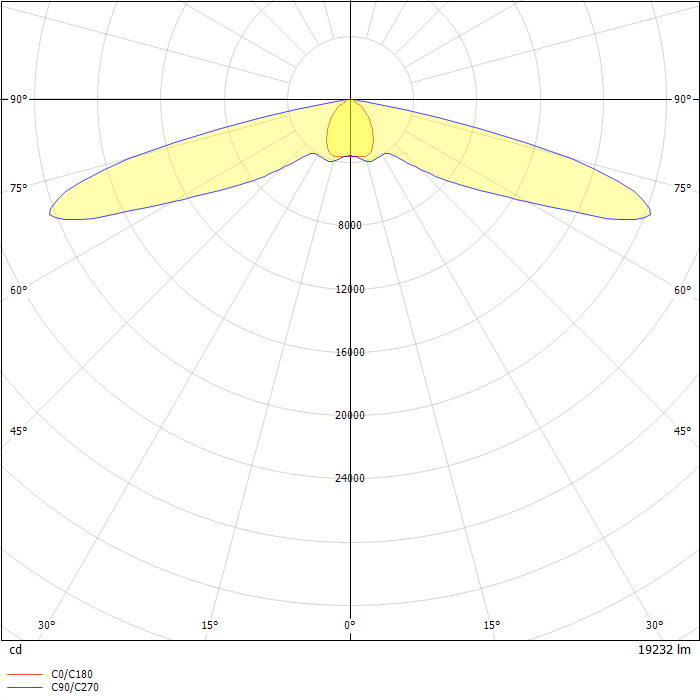

Photometrie-Dateien

ZIP file
