Produktdatenblatt

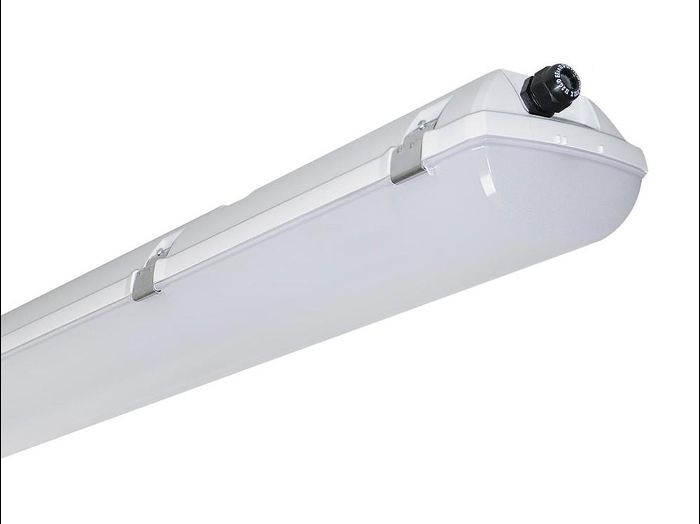

PRIMA LED Ex 2/21 1.2ft PCc 1600/840 1F

110392

TREVOS

light fitting certified for environments with potentially explosive atmospheres created by gas, dust or flammable vapours, group II, category 3 (zone 2/22); for use in potentially explosive environments. For definition, see the assembly manual and certificate; optimal mounting height: 3 to 8 m; ON/OFF electronic driver (AC, DC on demand); Body: grey PC (high mechanical resistance, UV stability, RAL 7035); Diffuser: translucent PC (high mechanical resistance, UV stability); Reflector: steel sheet, white (RAL 9003); Clips: stainless steel + polyamide; Sealing: polyurethane (PUR), foam-filled base groove; Connection: screwless five-pole terminal block, 3-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand); Power: 10,5 W; Luminaire flux: 1420 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK10; Ambient temperature: -25|60 °C; Weight: 2,1 kg;

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 10,5 W 1630 lm 155 lm/W 4000 K 80
PRIMA LED Ex 2/21 1.2ft PCc 1600/840 1F

PRIMA LED Ex 2/21 1.2ft PCc 1600/840 1F

Lichtaustritt 1 (integriert)

LED

Montageart

Deckenanbau

Bauform und Abmessungen

Länge: 662 mm

Breite: 145 mm

Höhe: 111 mm

Ausrichtbarkeit

Starr

Design

Oberflächenanmutung: Kunststoff

Gehäusefarbe: Silbergrau, Weiß

Designer: TREVOS

Elektrik

Systemleistung: 10,5 W

Vorschaltgerät: EVG

Schutzklasse: I

Schutzeigenschaften

IP: 66

IK: 10

Kennzeichnungen: CE, ENEC

Explosionsschutz: geeignet zum Gebrauch in Zone: 2

Weitere Informationen

Temperaturbereich: -25...60 °C

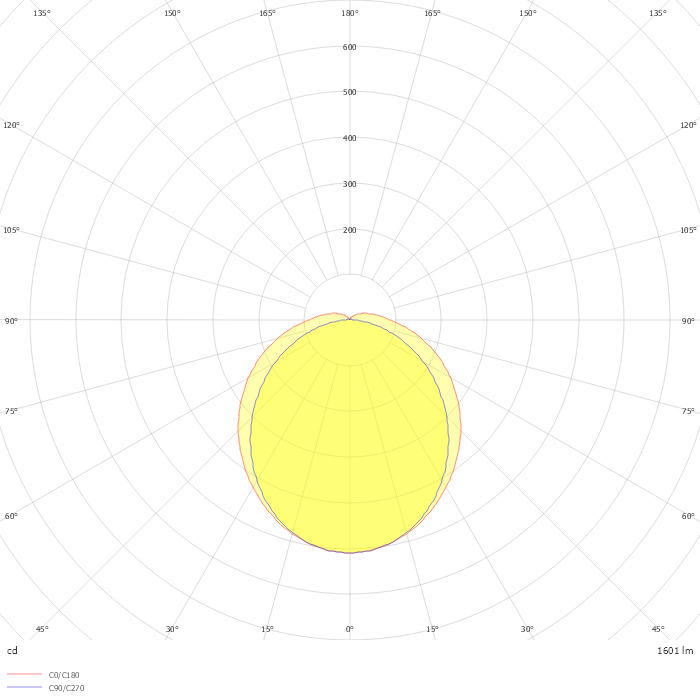

Photometrie-Dateien

ZIP file
