Produktdatenblatt

URBINO TWILIGHT LED 102W 12650lm 3000K IP66 O8 - for town and local roads gray I

130222.5L461.081.986

LUG

Produktbild 1: URBINO TWILIGHT LED 102W 12650lm 3000K IP66 O8 - for town and local roads gray I
Produktbild 1: URBINO TWILIGHT LED 102W 12650lm 3000K IP66 O8 - for town and local roads gray I

Produktbild 1: URBINO TWILIGHT LED 102W 12650lm 3000K IP66 O8 - for town and local roads gray I



IP
66

IK
08

Professional streetlight luminaire for LED light sources. Luminaire with twilight sensor. High efficacy to 131 lm/W Mounting: on pillar ø60/76mm, on outriggers ø60/76mm Body: high pressure die-cast aluminum Lateral Surface Wind Exposed: 0.054 m² Power supply efficiency >95% Power: 220-240V 50/60Hz Lifetime (L90B10): 100 000 h Available on request: DALI, DIM 1..10V, LLOC, knife switch, 10kV surge protection, NTC, access to the driver chamber without the use of tools. Additional information: tilt adjustment: -15° to +15° (every 5°). Other remarks: the pole and boom are not part of the luminaire Warranty: 5 years Application: express roads, local roads, town roads, residential area roads, pedestrian crossings, area lighting, avenues, promenade, cycle paths. Type of optics: O8 - for town and local roads

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 102 W 12650 lm 124 lm/W 3000 K 70
URBINO TWILIGHT LED 102W 12650lm 3000K IP66 O8 - for town and local roads gray I

URBINO TWILIGHT LED 102W 12650lm 3000K IP66 O8 - for town and local roads gray I

Lichtaustritt 1 (integriert)

LED

Montageart

Mastaufsatzmontage

Bauform und Abmessungen

Länge: 550 mm

Breite: 250 mm

Höhe: 195 mm

Ausrichtbarkeit

Schwenkbar

Design

Gehäusefarbe: Silbergrau

Elektrik

Systemleistung: 102 W

Schutzklasse: I

Eingebaute Sensorik

Eingebaute Sensorik: Tageslichtsensor

Schutzeigenschaften

IP: 66

IK: 08

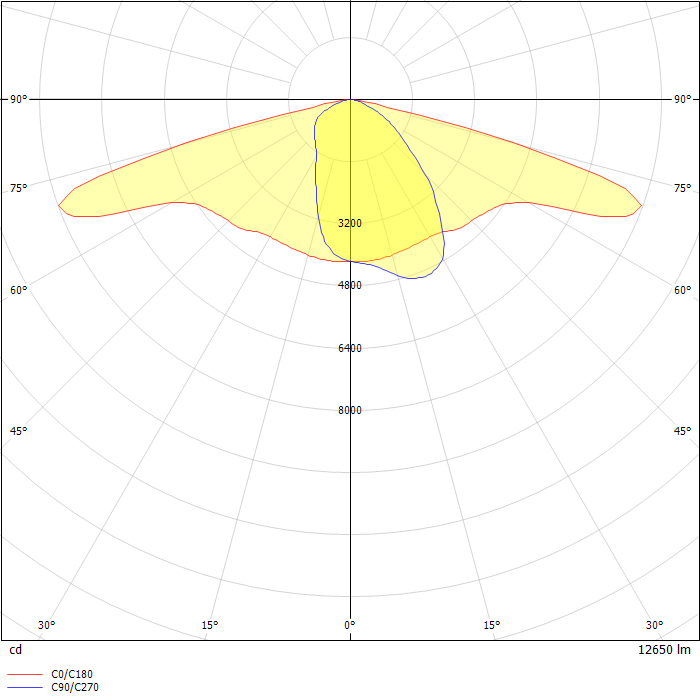

Photometrie-Dateien

ZIP file
