Produktdatenblatt

ZAW011WL-COOL

ZAW011WL-COOL

RP-TECHNIK

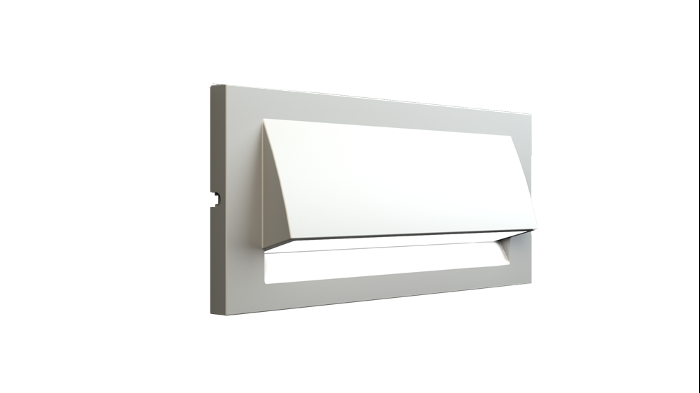

Robust wall-mounted Zinc die-cast luminaire for the lighting of escape and rescue routes in exit areas according to DIN EN 60598-1, DIN EN 60598-2-22 and EN 1838. Appealing design with concealed screws. Available for central power systems or as a LED self-contained emergency luminaire. The COOL light is equipped with an external battery housing for installation in the building. The installation of the lamp can be done outdoors or in cold stores.

Verfügbare Bestückungen Lampen-Nennleistung Lampen-Lichtstrom Leuchten-Lichtausbeute CCT CRI
1 x LED 3,9 W 190 lm 49 lm/W 6500 K 75
ZAW011WL-COOL

ZAW011WL-COOL

Lichtaustritt 1 (Notbeleuchtung)

1 x LED

Montageart

Wandanbau

Bauform und Abmessungen

Länge: 315 mm

Breite: 65 mm

Höhe: 140 mm

Ausrichtbarkeit

Starr

Design

Gehäusefarbe: Weiß

Elektrik

Systemleistung: 1 W

Schutzklasse: 0

Informationen zu Notlichtfunktionen

Reine Notbeleuchtung

Rettungszeichenleuchte: N/A

Schutzeigenschaften

IP: 65

IK: 08

Kennzeichnungen: CE

Weitere Informationen

Temperaturbereich: -25...40 °C

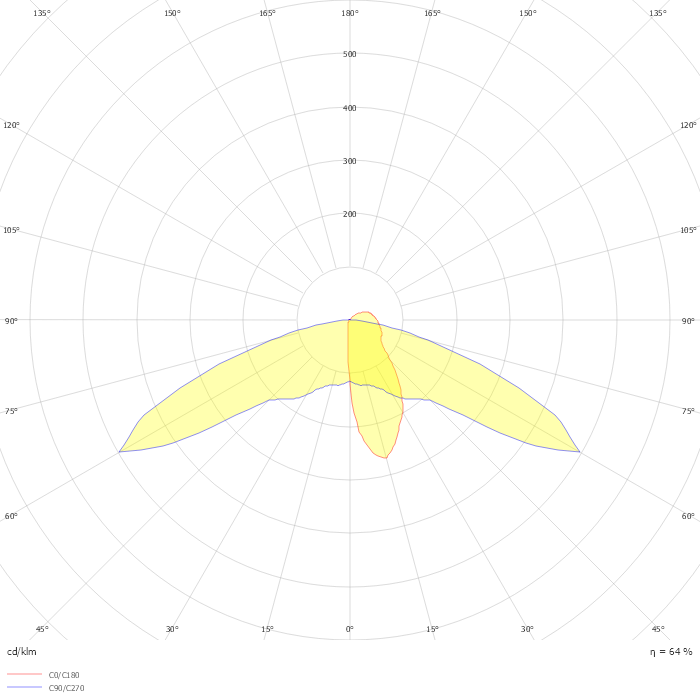

Photometrie-Dateien

ZIP file
