Produktdatenblatt

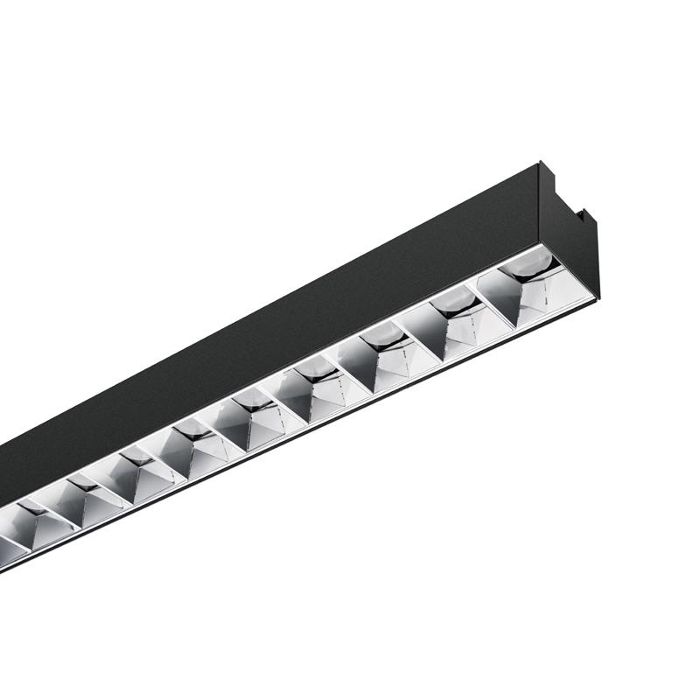

Wallwasher CXS5050S-100 28W 4000K 15X45D(SBK)

31015020132

CDN

Well-designed:The linear profile size is only 48mm*47.5mm, which can blend inconspicuously into the ceiling layout. Various Lighting Effects:Optional diffusers bring out four light distributions as 24°/36°/50°/ 15°*45°. High CRI, high brightness LED chips:It's equipped with Bridgelux high CRI and high lumen output LED Ra ≥90, truly shows the color of the object, good color consistency. Application:3 installations: recessed, fixed surface-mounted, adjustable surface-mounted. Convenient for installation.

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 29,81 W 1912 lm 64 lm/W 4000 K 90
Wallwasher CXS5050S-100 28W 4000K 15X45D(SBK)

Wallwasher CXS5050S-100 28W 4000K 15X45D(SBK)

Lichtaustritt 1 (integriert)

LED

Montageart

Deckenanbau

Bauform und Abmessungen

Länge: 39 mm

Breite: 21 mm

Höhe: 100 mm

Ausrichtbarkeit

Starr

Blendungsbegrenzung

Blendungsbegrenzung: UGR < 19

Elektrik

Systemleistung: 29,81 W

Schutzeigenschaften

IP: 20

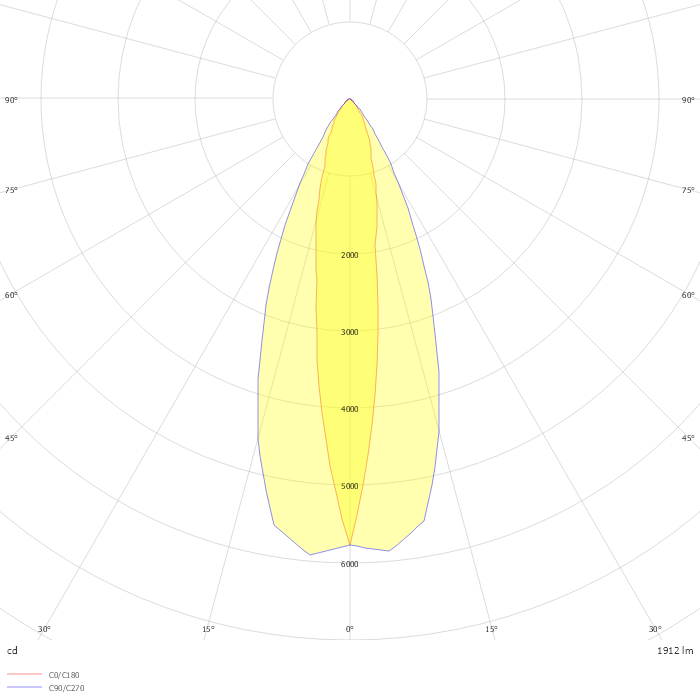

Photometrie-Dateien

ZIP file
