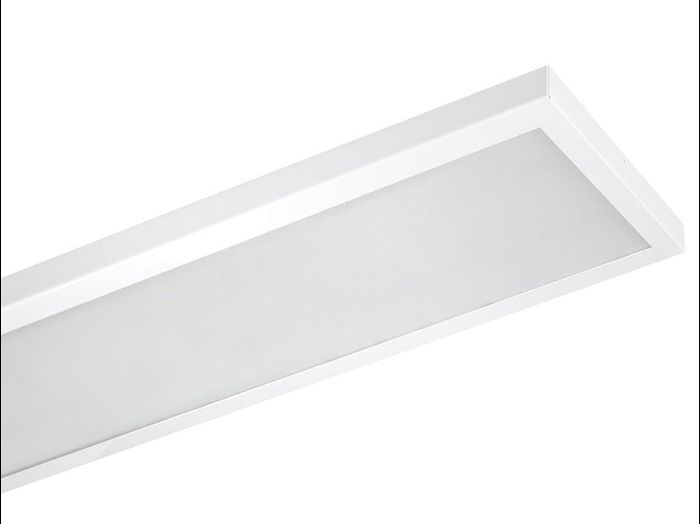

modern, low-profile light fitting for indoor lighting in offices, corridors and common rooms; diffuser with multi-layered micropyramid (MPR) optics, with UGR < 19; digitally dimmable DALI driver (AC/DC); Body: steel sheet, white (RAL 9003); Diffuser: multi-layered micropyramid (MPR) optics for distributing light without glare in accordance with EN 12464-1 with UGR < 19; Connection: screwless five-pole terminal block; Power: 37,1 W; Luminaire flux: 5070 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK02; Ambient temperature: -25|35 °C; Weight: 7,6 kg;
Lampentyp | Lampen-Nennleistung | Gesamtlichtstrom | Leuchten-Lichtausbeute | CCT | CRI |
---|---|---|---|---|---|
LED | 37,1 W | 6500 lm | 175 lm/W | 4000 K | 80 |
Montageart
Deckenanbau
Bauform und Abmessungen
Länge: 1460 mm
Breite: 320 mm
Höhe: 34 mm
Ausrichtbarkeit
Starr
Design
Gehäusefarbe: Weiß
Designer: TREVOS
Elektrik
Systemleistung: 37,1 W
Vorschaltgerät: EVG
Controller: DALI
Schutzklasse: I
Schutzeigenschaften
IK: 02
Kennzeichnungen: CE
Weitere Informationen
Temperaturbereich: -25...35 °C

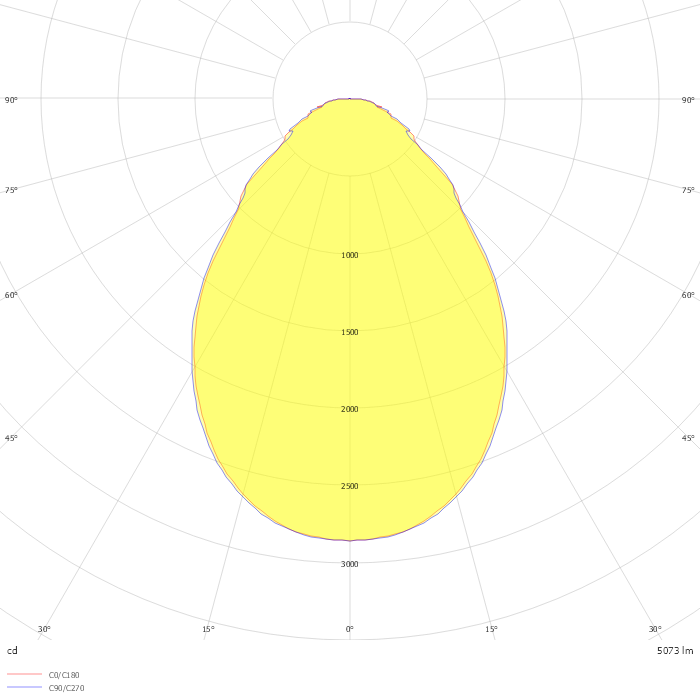

Photometrie-Dateien
ZIP file
