Produktdatenblatt

AMEDSE L40 LE3

Amenity Decorative Secure Emergency

Dextra

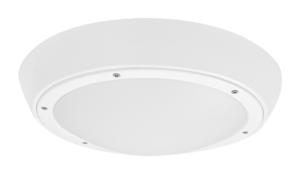

Amenity Decorative Secure - IP65, IK10 Surface mounted secure luminaire, white aluminium body, opal polycarbonate diffuser. When installed with anti-pick mastic to seal the luminaire to the mounting surface the AMED Secure complies with ligature resistant requirements of the Department of Health Environmental Design Guide, Adult Medium Secure Services. Options: LE3 - Lithium Emergency (244 lumens) LS3 - Lithium Selftest LA3 - Lithium Autotest A - Digital Addressable Lighting Interface (DALI) C - Bi-Level Dimming (Corridor Function)* S - Switch Dimming D - Digital Dimming (DSI) R25E - Reacta 25, On / Off High Frequency R25C - Reacta 25, Corridor Mode* RLM - Reacta-Link Wireless Microwave Presence & Bright Out RCME - Reacta-Control Wireless Microwave On/Off RCMC - Reacta-Control Wireless Microwave Corridor Mode* *Bi-Level Dimming. Will only dim the luminaire to 10% during absence and brightout, it will not turn the luminaire off. NL - Night Light (not available with Emergency version)

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 3 W 244 lm 81 lm/W 4000 K 80
AMEDSE L40 LE3

AMEDSE L40 LE3

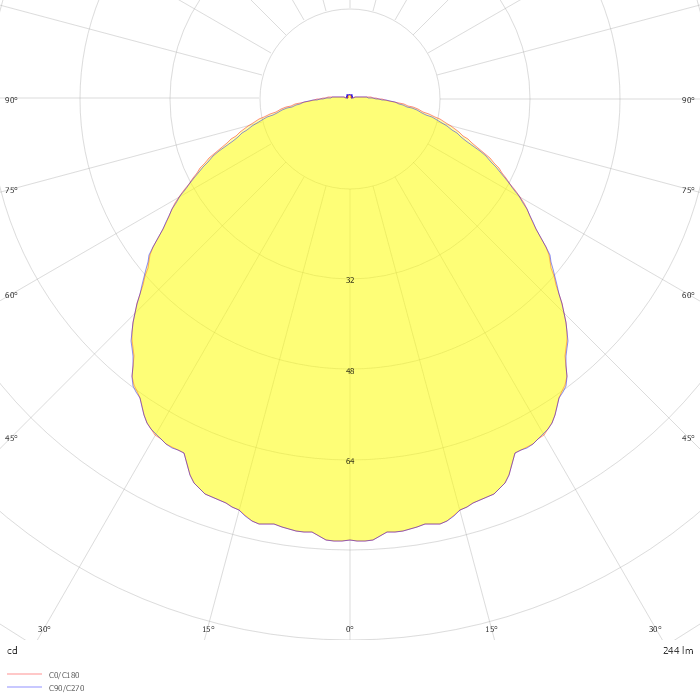

Lichtaustritt 1 (integriert, Notbeleuchtung)

LED

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 27,2 W 3024 lm 111 lm/W 4000 K 80
AMEDSE L40 LE3

AMEDSE L40 LE3

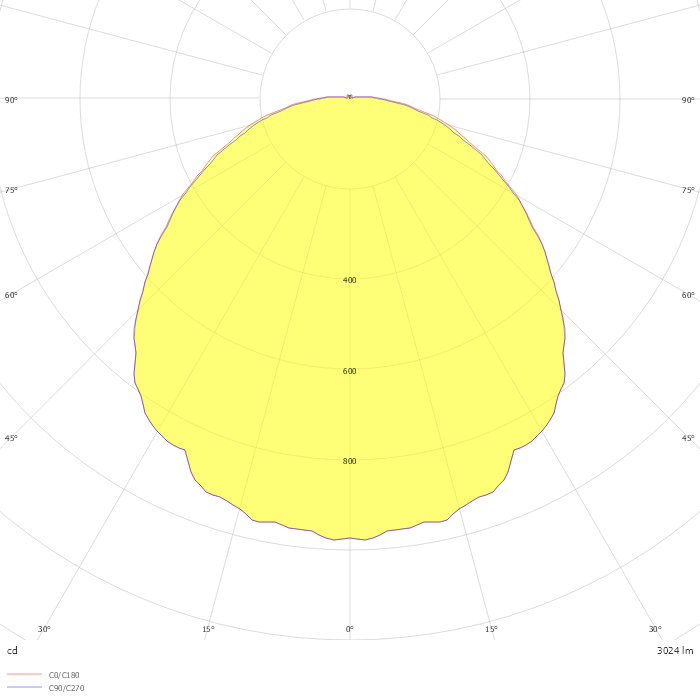

Lichtaustritt 2 (integriert)

LED

Montageart

Deckenanbau

Bauform und Abmessungen

Höhe: 110 mm

Durchmesser: 450 mm

Ausrichtbarkeit

Starr

Elektrik

Systemleistung: 30,2 W

Vorschaltgerät: EVG

Schutzklasse: I

Informationen zu Notlichtfunktionen

Zusätzliche Notbeleuchtungseigenschaft

Rettungszeichenleuchte: N/A

Schutzeigenschaften

IP: 40

IK: 10

Kennzeichnungen: CE

Photometrie-Dateien

ZIP file
