Produktdatenblatt

PRIMA 1.2ft PC 1600/840 1F

105257

TREVOS

resistant to dust, humidity and spraying water, the light fitting is suitable for both indoor and outdoor roofed industrial spaces; variable suspension spacing ranging from 110 - 370 mm; enable the light to be installed onto suspension fittings left over from previous lighting; optimal mounting height: 3 to 8 m; ON/OFF electronic driver (AC, DC on demand); Body: grey PC (high mechanical resistance, UV stability, RAL 7035); Diffuser: translucent PC (high mechanical resistance, UV stability); Reflector: steel sheet, white (RAL 9003); Clips: polyamide + 15 % fibreglass; Sealing: polyurethane (PUR), foam-filled base groove; Connection: screwless three-pole terminal block, 3-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand); Power: 10,5 W; Luminaire flux: 1520 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK10; Ambient temperature: -25|50 °C; Weight: 1 kg;

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 10,5 W 1630 lm 155 lm/W 4000 K 80
PRIMA 1.2ft PC 1600/840 1F

PRIMA 1.2ft PC 1600/840 1F

Lichtaustritt 1 (integriert)

LED

Montageart

Deckenanbau

Bauform und Abmessungen

Länge: 615 mm

Breite: 98 mm

Höhe: 84 mm

Ausrichtbarkeit

Starr

Design

Oberflächenanmutung: Kunststoff

Gehäusefarbe: Silbergrau, Weiß

Designer: TREVOS

Elektrik

Systemleistung: 10,5 W

Vorschaltgerät: EVG

Schutzklasse: I

Schutzeigenschaften

IP: 66

IK: 10

Kennzeichnungen: CE, ENEC

Weitere Informationen

Temperaturbereich: -25...50 °C

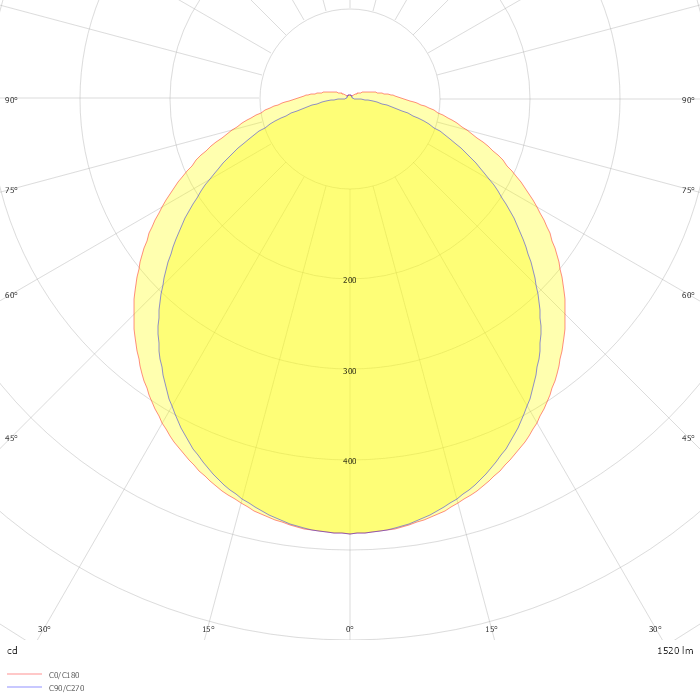

Photometrie-Dateien

ZIP file
