Produktdatenblatt

Divine 72 CW 90°x10°

163

Anolis

The latest fixture in the Divine range, the Divine 72 features cutting–edge Zero Passive technology to eliminate light over–spill with ourmost precise optics to date. Specifically developed to optimise the beam for long throw applications, the native 6° beam angle delivers an impressive 6.573 lx at 10 meters. Backed by a 5 year warranty and an IP67 rating, this unit has been designed for the rigours of extreme weather, and with flexible mounting options and accessories it can be installed on the most demanding projects.

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 365 W 15610 lm 43 lm/W 6500 K 76
Divine 72 CW 90°x10°

Divine 72 CW 90°x10°

Lichtaustritt 1 (integriert)

LED

Montageart

Stehleuchte / Poller, Bodenanbau

Bauform und Abmessungen

Länge: 463 mm

Breite: 175 mm

Höhe: 314 mm

Ausrichtbarkeit

Schwenkbar

Elektrik

Systemleistung: 365 W

Farbveränderliche Leuchte

Schutzklasse: I

Schutzeigenschaften

IP: 67

IK: 10

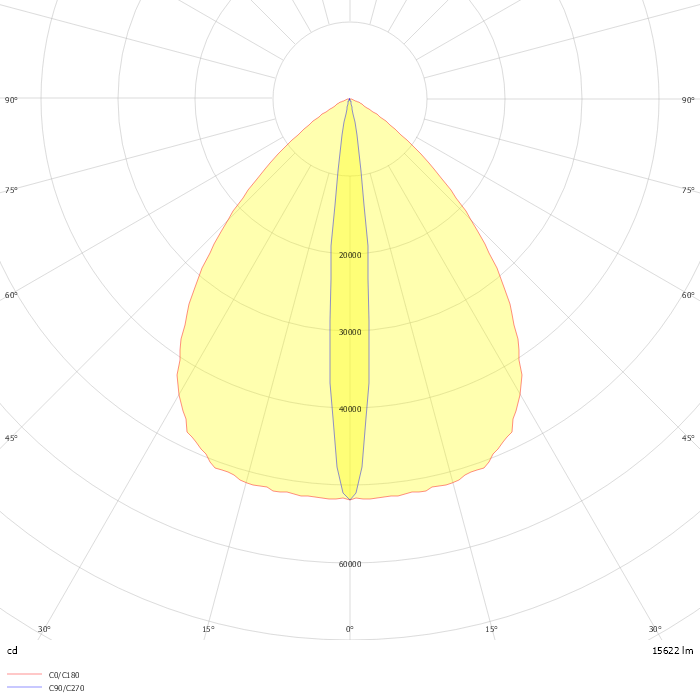

Photometrie-Dateien

ZIP file
