Produktdatenblatt

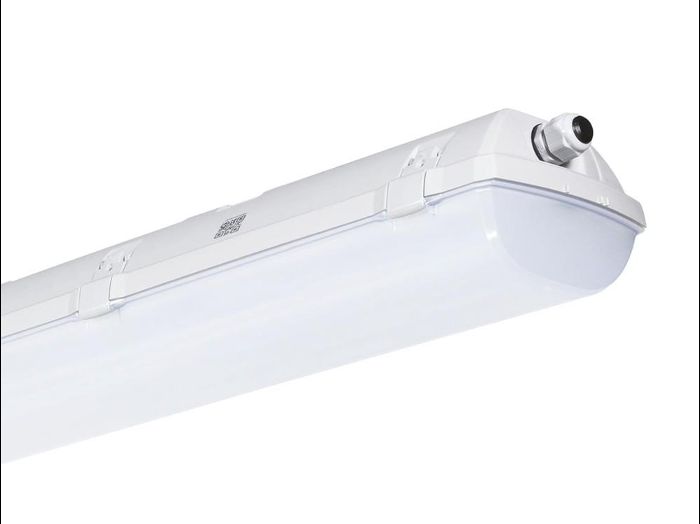

FUTURA 2.5ft HE ABS Al 22000/840 DALI 1F

103428

TREVOS

unique design, resistant against humidity and dust, with IP66 enclosure rating and built-in aluminium heat sinks; high-efficiency light fitting with sulphur-resistant LED modules; optimal mounting height: 3.5 to 10 m; digitally dimmable DALI driver (AC/DC); Body: dark grey ABS (high chemical resistance, UV stability, RAL 7001); Diffuser: translucent acrylic (AC), UV stable, chemically resistant; Reflector: steel sheet, white (RAL 9003); Clips: polyamide + 15 % fibreglass; Sealing: polyurethane (PUR), foam-filled base groove; Connection: screwless five-pole terminal block, 5-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand); Power: 127,2 W; Luminaire flux: 20430 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK10; Ambient temperature: -25|35 °C; Weight: 3,25 kg;

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 127,2 W 23220 lm 183 lm/W 4000 K 80
FUTURA 2.5ft HE ABS Al 22000/840 DALI 1F

FUTURA 2.5ft HE ABS Al 22000/840 DALI 1F

Lichtaustritt 1 (integriert)

LED

Montageart

Deckenanbau

Bauform und Abmessungen

Länge: 1452 mm

Breite: 145 mm

Höhe: 112 mm

Ausrichtbarkeit

Starr

Design

Oberflächenanmutung: Kunststoff

Gehäusefarbe: Silbergrau, Weiß

Designer: TREVOS

Elektrik

Systemleistung: 127,2 W

Vorschaltgerät: EVG

Controller: DALI

Schutzklasse: I

Schutzeigenschaften

IP: 66

IK: 10

Kennzeichnungen: CE, ENEC

Weitere Informationen

Temperaturbereich: -25...35 °C

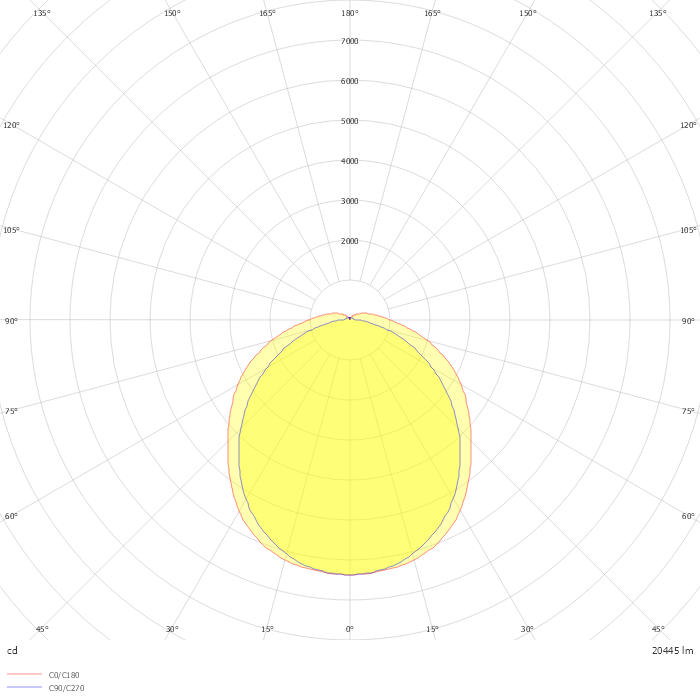

Photometrie-Dateien

ZIP file
