Produktdatenblatt

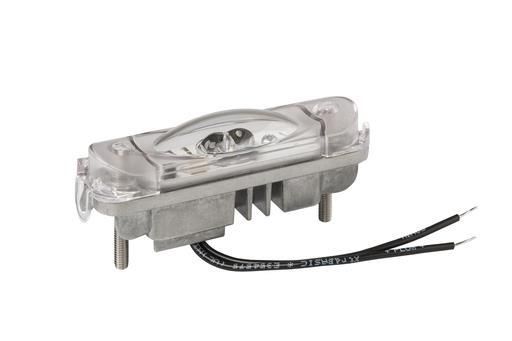

Handrail luminaire 93011 LED (Ø 42,4x2) @700mA

40071355046

Eaton Emergency Lighting

HandRail 93011 LED handrail mounting with 70° asymmetric optics, indoor and outdoor applications, for installation into 42 mm Dia. handrail * (Does not include driver) • Safety luminaire in LED technology for mounting into handrail • Can be mounted in stainless steel, galvanized steel or plastic handrail • Discrete mounting for improved aesthetics • Superior spacing due to optics technology and highly efficient HighPower LEDs • Suitable for indoor and outdoor applications • Up to 11 m from luminaire to luminaire with optics for open area illumination • Minimum service requirement due to high service life of the LEDs (50,000 hours)

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 2,1 W 235 lm 112 lm/W 4000 K 80
Handrail luminaire 93011 LED (Ø 42,4x2) @700mA

Handrail luminaire 93011 LED (Ø 42,4x2) @700mA

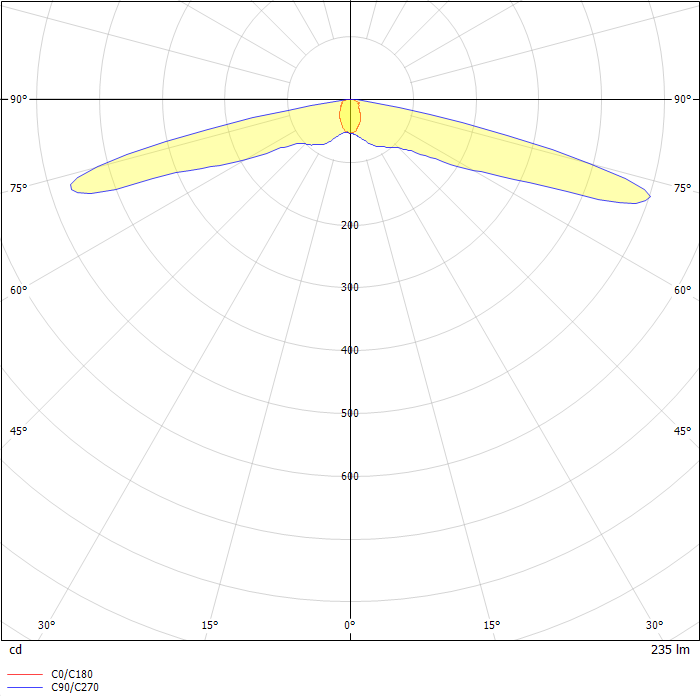

Lichtaustritt 1 (integriert)

LED

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 2,1 W 235 lm 112 lm/W 4000 K 80
Handrail luminaire 93011 LED (Ø 42,4x2) @700mA

Handrail luminaire 93011 LED (Ø 42,4x2) @700mA

Lichtaustritt 2 (integriert, Notbeleuchtung)

LED

Montageart

Mastansatzmontage

Bauform und Abmessungen

Länge: 100 mm

Breite: 30 mm

Höhe: 40 mm

Ausrichtbarkeit

Starr

Elektrik

Systemleistung: 4,2 W

Schutzklasse: II

Informationen zu Notlichtfunktionen

Zusätzliche Notbeleuchtungseigenschaft

Notfall Batterieversorgung: Zentralbatterie

Rettungszeichenleuchte: N/A

Schutzeigenschaften

IP: 66

IK: 07

Photometrie-Dateien

ZIP file
