Produktdatenblatt

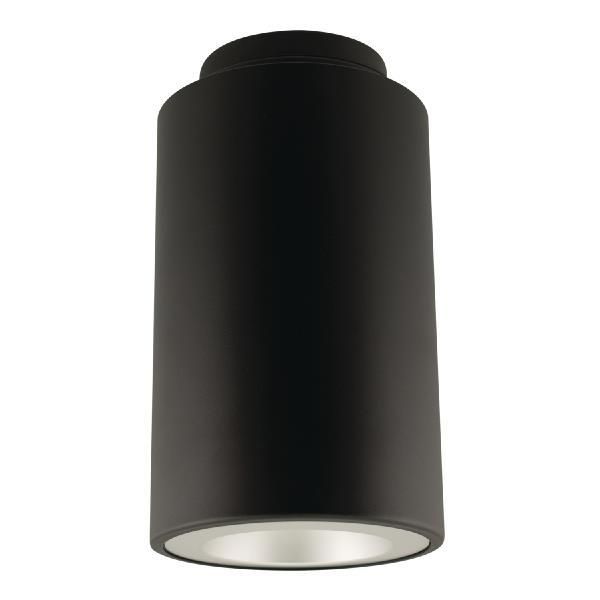

HCC4 LED 4" Cylinder Downlight Series

HCC4S10D010MW-HM412840-41MDC

Cooper Lighting

Lumens: 1,000, 1,500 and 2,000, 4 color temperatures: 2700K, 3000K, 3500K, 4000K CCT; CRI: 80 or 90, Distributions: Precision-formed reflectors in Narrow, Medium and Wide, Wall wash distribution with exclusive rotatable linear spread lens, Specular, Semi-Specular and White reflectors; Black or White baffles, Cylinder colors: Matte White, Matte Black, Bronze and Silver, Universal Voltage 120V – 277V; 0-10V analog dimming down to 1%, Mounting: wall, surface, pendant and aircraft cable, L70 at 50,000 hours (70% lumen maintenance at 50,000 hours)

Lampentyp Lampen-Nennleistung Gesamtlichtstrom Leuchten-Lichtausbeute CCT CRI
LED 10 W 958 lm 96 lm/W 4000 K 80
HCC4 LED 4" Cylinder Downlight Series

HCC4 LED 4" Cylinder Downlight Series

Lichtaustritt 1 (integriert)

LED

Montageart

Deckeneinbau

Bauform und Abmessungen

Höhe: 10 mm

Durchmesser: 114 mm

Ausrichtbarkeit

Starr

Elektrik

Systemleistung: 10 W

Schutzeigenschaften

IP: 47

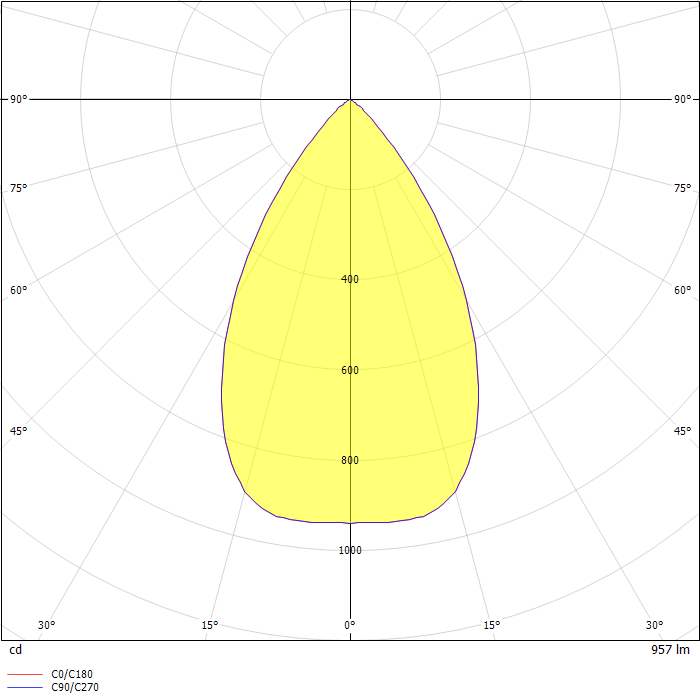

Photometrie-Dateien

ZIP file
