Produktdatenblatt

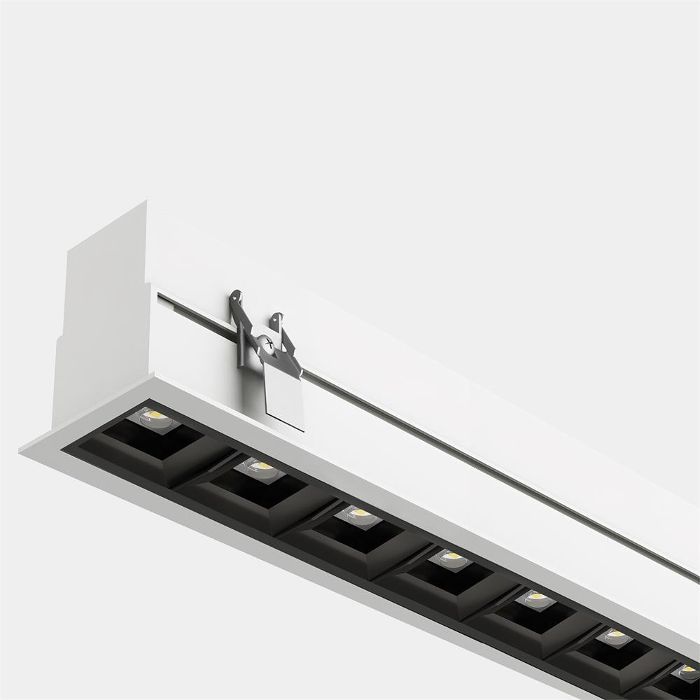

Infinite Pro 854mm Recessed Opticell

AK13-12X9CLOS14

LedsC4

LedsC4 Infinite Pro 854mm Recessed Opticell AK13-12X9CLOS14 Lineal lighting system for indoor use. For downlighting. Structure finish: White. Diffuser material: Polycarbonate. Diffuser finish: Opticell. Warranty: 5 Years. Product net weight (Kg): 1.89 Product length (mm): 854 Product width or diameter (mm): 75 Product height (mm): 82 Ø of the hole for recessing (mm): 860x65 Permitted ceiling thickness: 0-25 Class 1. Luminaire not suitable for coating with insulation materials. IP: IN IP20 / OUT IP40. LED. No. of lampholders or LEDs: 1. LED brand: TRIDONIC. Driver brand: PHILIPS. Maximum power of light source: 10.6W. Colour temperature: 4000K. Colour rendering index: 90. MacAdam Steps: 3. Hours of life: 50.000h L80B20. UGR: 15.2. Photobiological risk: RG1. % de Flickering: <4%. Real flux (lm): 1718. Real lm/W: 146. Voltage / frequency range: 220-240V/50-60Hz. Voltage: 120. Equipment included: Yes. Total power: 11.8. Power factor: 0.95. Dimmable equipment included: ON-OFF.

Verfügbare Bestückungen Lampen-Nennleistung Lampen-Lichtstrom Leuchten-Lichtausbeute CCT CRI
1 x LED 11,87 W 1718 lm 145 lm/W 4000 K 90
Infinite Pro 854mm Recessed Opticell

Infinite Pro 854mm Recessed Opticell

Lichtaustritt 1

1 x LED

Montageart

Deckenanbau, Stehleuchte / Poller

Bauform und Abmessungen

Länge: 52 mm

Breite: 850 mm

Höhe: 90 mm

Ausrichtbarkeit

Starr

Elektrik

Systemleistung: 11,87 W

Schutzklasse: I

Schutzeigenschaften

IP: 40

Kennzeichnungen: CE

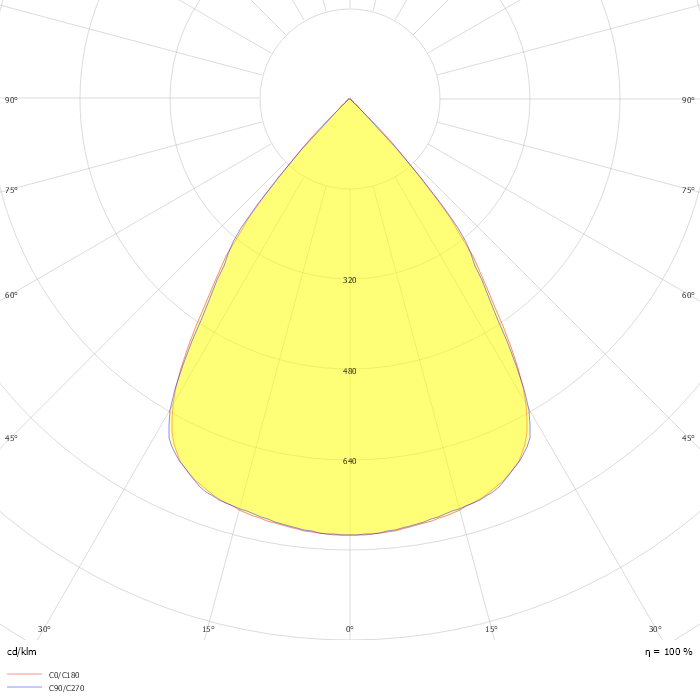

Photometrie-Dateien

ZIP file
