Produktdatenblatt

ATTRIA TK 220 420 MO VWF 940 BK/WH

AT1TK42MOVW940NBW

Lamp

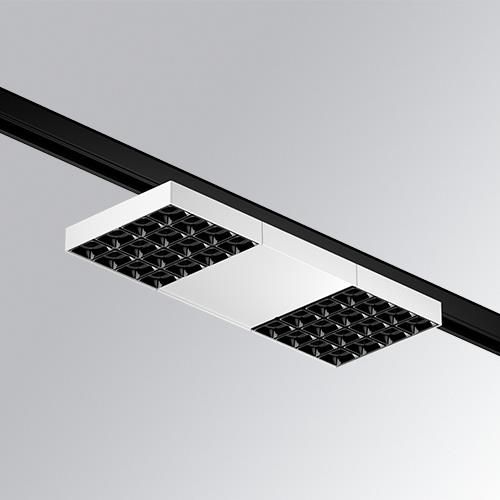

LAMP downlight for track model ATTRIA TK 220 420 MO. Body made of injection and extrusion of recycled aluminum with an 80% rate painted and black glossy polycarbonate reflector. Luminaire with 360° rotation in the adapter, with Very Wide Flood Optics (85°) for greater efficiency and control of light distribution. Mid power LED, with a color temperature of 4000K with CRI90. ON/OFF electronic equipment included. With an IP20 protection degree, IK07. Class I insulation. Photobiological safety group 0. Lifespan: 70,000 L80 B10. Finished in white and black.

Verfügbare Bestückungen Lampen-Nennleistung Lampen-Lichtstrom Leuchten-Lichtausbeute CCT CRI
1 x LED 49,5 W 5208 lm 105 lm/W 4000 K 90
ATTRIA TK 220 420 MO VWF 940 BK/WH

ATTRIA TK 220 420 MO VWF 940 BK/WH

Lichtaustritt 1

1 x LED

Montageart

Deckenanbau, Stromschiene

Bauform und Abmessungen

Länge: 150 mm

Breite: 420 mm

Höhe: 35 mm

Ausrichtbarkeit

Drehbar

Elektrik

Systemleistung: 49,5 W

Schutzklasse: I

Schutzeigenschaften

IP: 20

IK: 07

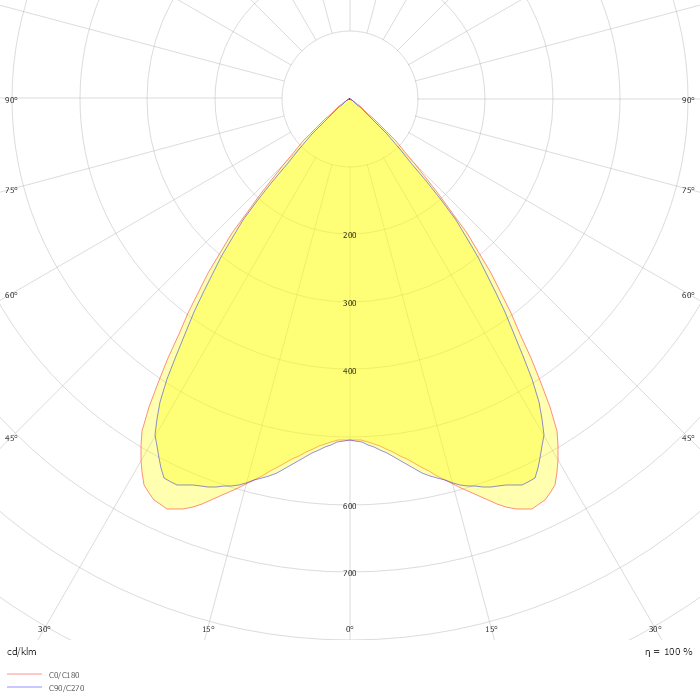

Photometrie-Dateien

ZIP file
